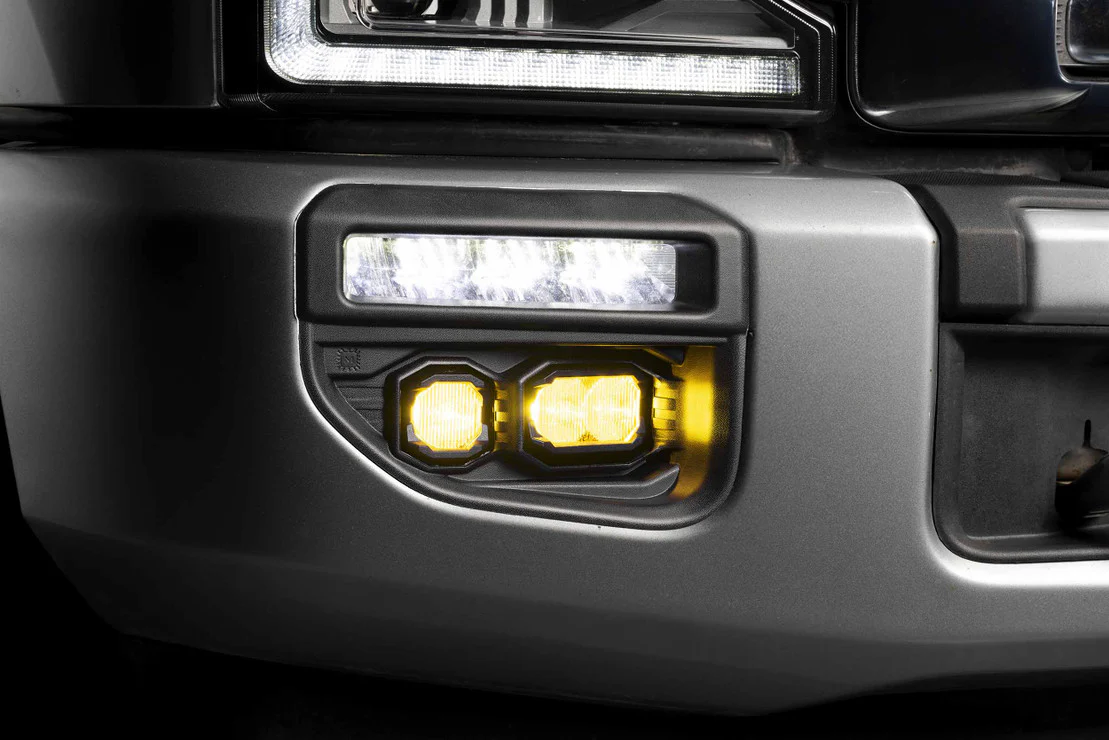

LED fog light pod system designed for your 2020-2022 Ford Super Duty F250, F350, F450, F550 truck WITH THE FACTORY LED FOG LIGHT STRIPS are extremely bright, road legal, and easy to install! The 1Banger & 2Banger LED Fog Lights are designed for easy bolt-on, plug & play installation on your vehicle. The ultra bright and rugged Morimoto Banger pods use a wide beam pattern that is street legal and will not blind other drivers. There are 2 outputs and 2 colors to choose from, standard (NCS) or high perfomance (HXB), white or yellow. The brackets are designed to be a simple, easy bolt-on installation for your 2017-2022 Ford Super Duty truck. We are so confident in this system, that it is backed by a limited lifetime warranty!

Wide Beam: Maximum width

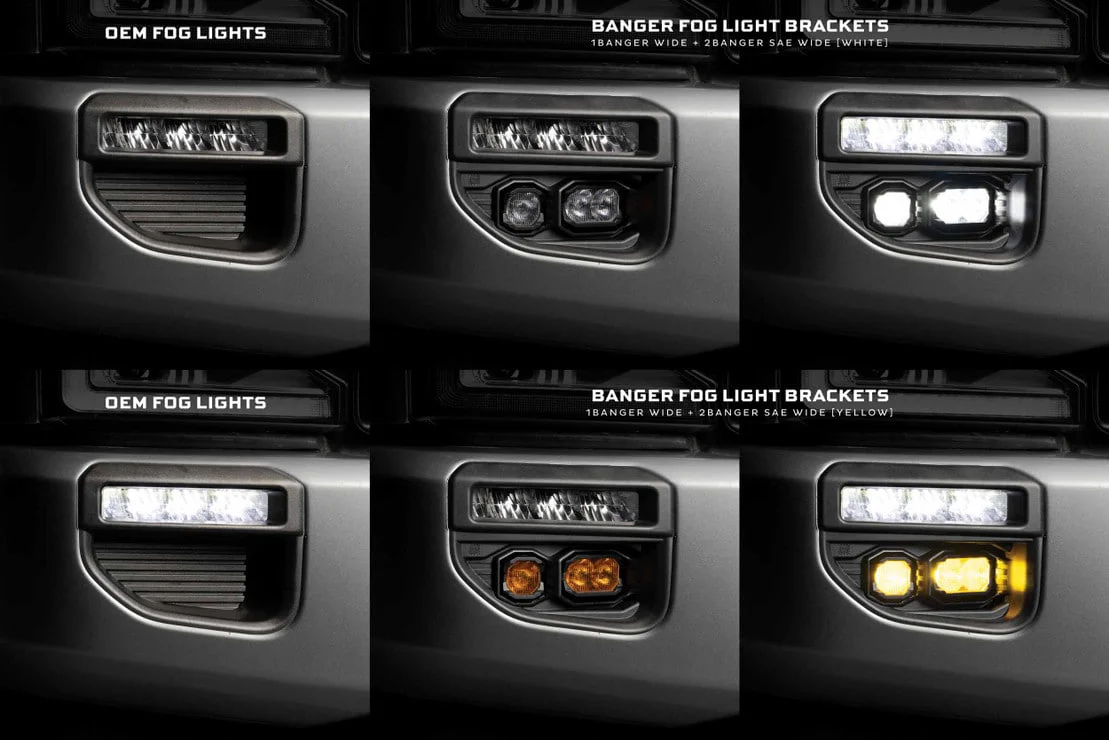

See video or photos for info on beam patterns

Click here for the flush mount 4banger LED pods installation guide

Vehicle Compatibility:

• 2020 Ford Super Duty F250, F350, F4450, F550
• 2021 Ford Super Duty F250, F350, F4450, F550
• 2022 Ford Super Duty F250, F350, F4450, F550
• REPLACES FORD PART #: FL3Z15201B, FL3Z15200B

Morimoto 4Banger LED Light Pods Demo Video:

The brand new, patent-pending line of 4Banger Off-Road LED lights were completely designed, engineered, and tested in the USA, and everything about them is truly next level.

Kit Includes:

• LED PODS: 4x (2 Pairs) Morimoto 4Banger

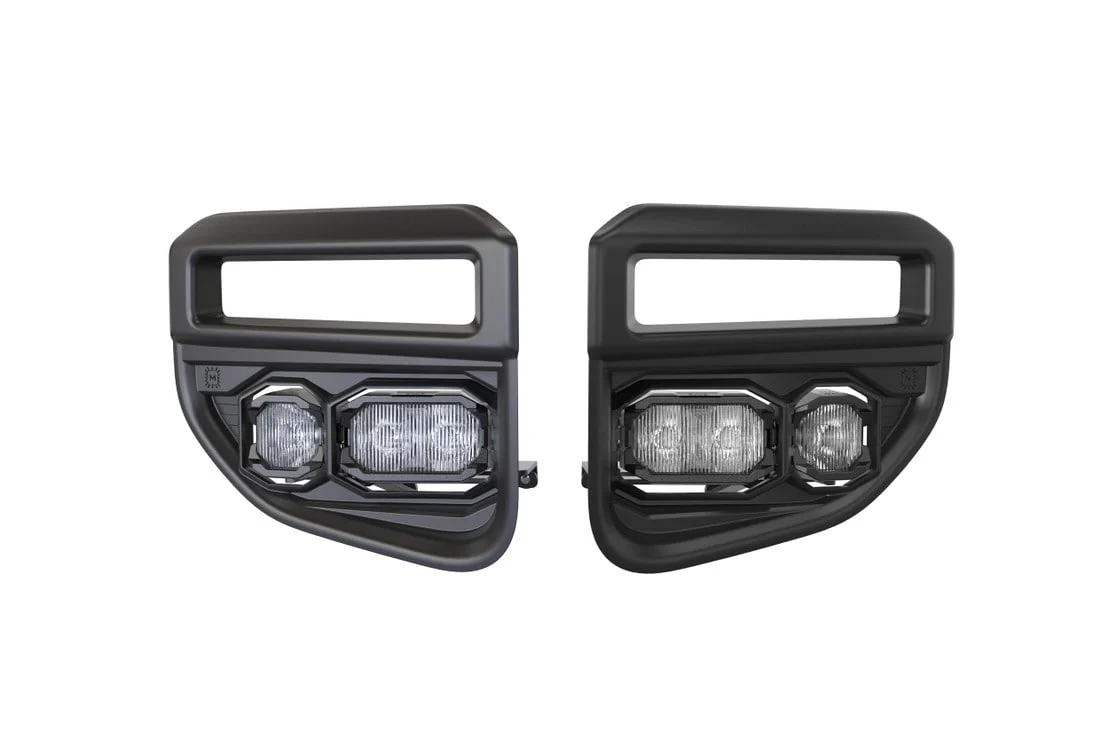

• MOUNTING HARDWARE: 2x (One Pair) w/ Template

• HARDWARE: Complete pack (stainless steel)

• VEHICLE SPECIFIC PLUG & PLAY WIRING CONNECTORS

• WARRANTY: Limited Lifetime (Click for Details)

Beam Information:

HXB WIDE BEAM: Illuminates the ground directly in front of the vehicle. The HXB Optics feature dual axis control. 1) for width, and 2) active hot spot control to project peak intensity right along the top of the beam pattern. The proper vertical gradient and powerful Osram HX Boost LEDs make these the brightest SAE-Compliant fog light pod on the market today (80% brighter than Rigid D-Series SAE Fog and photometrics verified SAE Compliant by Calcoast ITL). The 4Banger HXB Wide beam delivers the best combination of width, intensity, and control -- making it the most effective on and off-road LED fog light in the world. HXB WIDE YELLOW: 14,700 Cd (@20 Min / 21C Ambient) (147lux @ 10m) HXB WIDE WHITE: 22,400 Cd (@20 Min / 21C Ambient) (224lux @ 10m)

NCS WIDE BEAM: Illuminates the ground directly in front of the vehicle, making them a perfect complement to a set of high-performance Morimoto headlights. They produce a very wide beam to drastically improve visibility off to the sides of the road. Superior vertical gradient control eliminates glare to oncoming traffic, and when mounted in the fog light position and aimed appropriately. The NCS Wide beam is 14% brighter than its next closest competitor (Rigid D-Series SAE), while consuming 28% less power (15.6W vs 21.5W) and has also been verified by Calcoast ITL to meet SAE F photometric standards for on-road use as a fog light. NCS WIDE YELLOW: 8,680 Cd (Post Warm-Up) (86.8lux @ 10m) NCS WIDE WHITE: 14,400 Cd (Post Warm-Up) (144lux @ 10m)

Tech Specs:

• INPUT VOLTAGE: 9-18V DC
• POWER: 20w (NCS) 42w (HXB)
• CURRENT: 1.5A (NCS) or 3.2A (HXB)
• DIMENSIONS: 82mm W, 67mm H, 60mm D
• LIGHT SOURCE: 3x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost
• INPUT: Proprietary Overmolded Deutsch DT 2-Pin w/ Pigtail
• MATERIAL: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
• IP RATING: IP68K (Dust / High Pressure Water Resistant)

More Information:

PRODUCT DETAILS

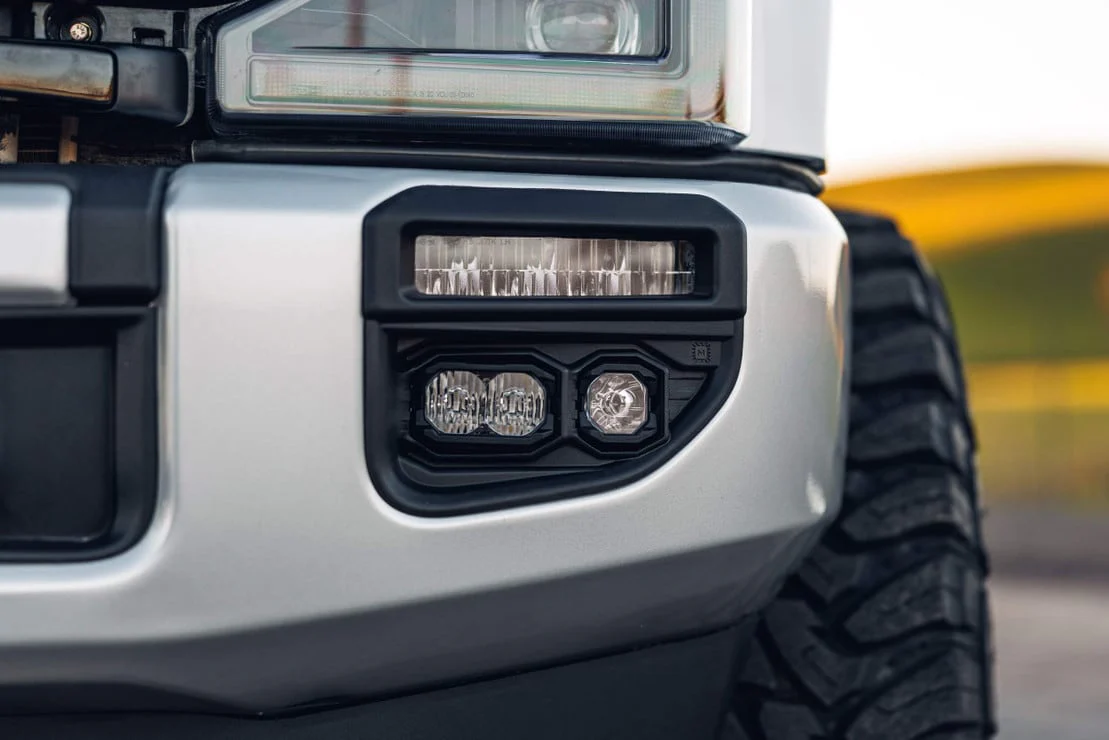

Engineered Solution: Thanks to the smaller than usual footprint of the 1 and 2Bangers, we now have a powerful fog light upgrade that fits properly and looks right on the 20-22 Super Duty. Other adapter kits for more traditionally sized LED pods stick out like a sore thumb. Not here. Morimoto engineers spent hundreds of hours hands-on in the garage during development of the Banger brackets alone.

Super Wide Output: The factory LED fog lights on these trucks perform well, but the aftermarket can always do better. Adding four pod lights to the stock bezels will dramatically improve your fog light output, and but wait, there's more! At the corners, the 1Banger fog light mounts are aimed 15-degrees outward for even more width. You'll see things you never have before!

All Weather: The optional, white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog--the Yellow-output version will slay in shady weather.

Easy Setup: Everything is designed to bolt-on and plug-n-play. No modifications are required to your vehicle or its wiring to add Banger pods in place of your factory fog light bezels. Each kit includes all the necessary hardware and high-quality wiring adapters to connect with your factory fog light harness. If you want to control them independently, universal harnesses and pigtails are available separately.

Fully Adjustable: These things are powerful, and while their wide beam pattern is perfect for use as a fog light, power is nothing without control. All brackets have +/- 6 degrees of vertical adjustability so that you can dial in the aim and ensure every ounce of intensity ends up on the road ahead, not in the eyes of oncoming traffic. This wide range of adjustment allows proper aim whether your truck is lowered, lifted, or stock height.

Air Cooled: As if the style, the fitment, the adjustability aren't enough: we have incorporated duct work into each bracket to actively cool the LED pods while you drive. This improves lumen maintenance by eliminating heat-soak, which is common in other LED pod fog light kits that have no ventilation for the heat sink.
