2019-2026+ Toyota Supra RGBW +A LED DRL Boards

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10
Product image 11
Product image 12
Product image 13
Product image 14
Product image 15
Product image 16
Product image 17
Product image 18
Product image 19
Product image 20
Product image 21
Product image 22
Product image 23
Product image 24
Product image 25

2019-2026+ Toyota Supra RGBW +A LED DRL Boards

2019-2026+ Toyota Supra RGBW +A LED DRL Boards

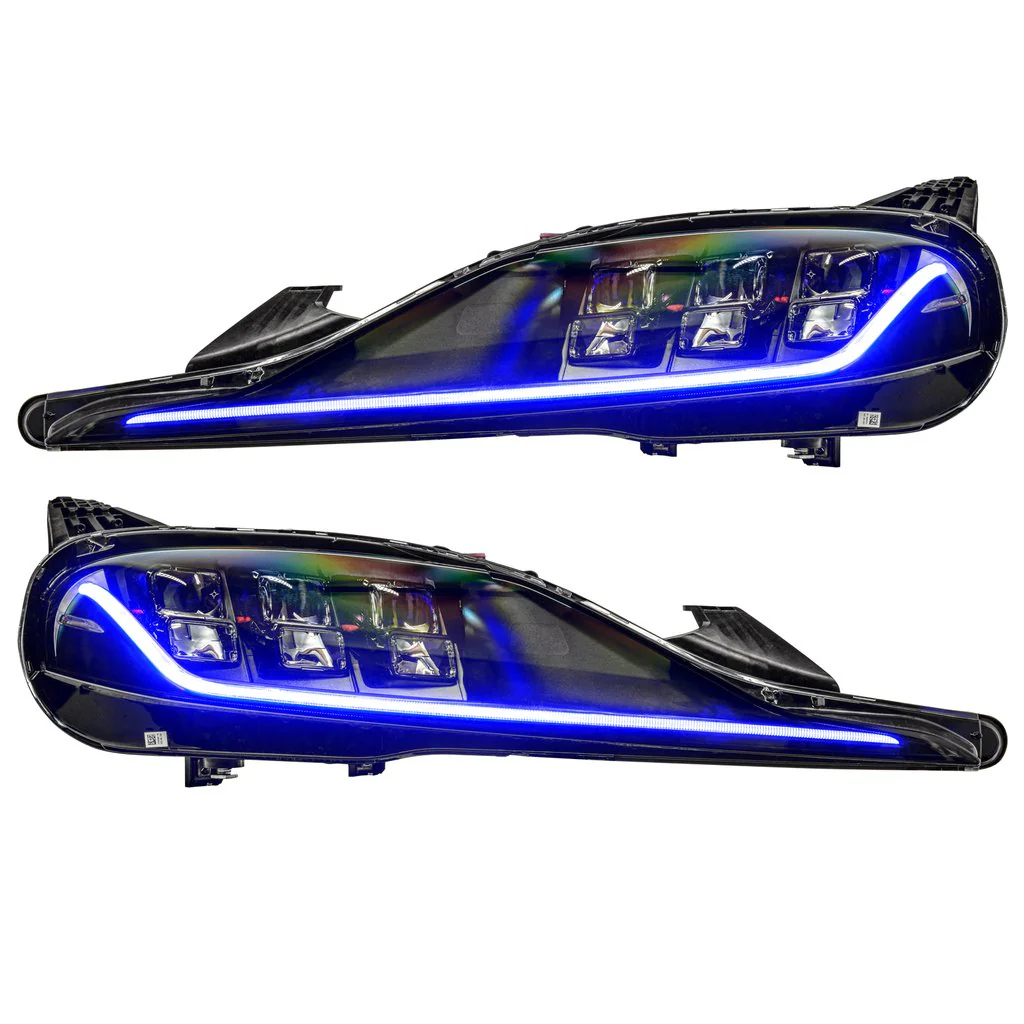

2019+ Toyota Supra A90 RGBW LED DRL boards can change to any solid color, pure white, several customizable flashing and fading patterns, music sync, plus they have an integrated amber/orange switchback turn signal feature.The LED DRL Boards are an OEM-grade solution, with exact fitment, and perfect LED alignment. The RGBW LED DRL installation process for the 2019+ Toyota Supra is incredibly simple. The installer does not need to dissemble the headlights because the DRL Circuit Board is accessible from the back side of the light. Simply remove the factory DRL Circuit Board and install the new RGBW + A DRL  Board using the original hardware, connect the boards to the supplied LED driver boxes, then connect the LED drivers to the controller. This is one of the easiest installs out there! Your order includes two sets of LED boards, one for each side of the vehicle.
  • Upgrade your factory DRL Boards with direct factory fitment
  • Choose any solid color or pure white
  • Customizable flashing/fading patterns (you can choose colors to add and several preset flashing fading patterns for the colors to go with)
  • Integrated Switchback Amber Turn-signal
  • Brighter than stock - Bright enough to see during day
Please refer to the RGBWA Wiring Guide when installing your LED replacement boards. The black wires on the LED driver boxes must be grounded/-. The yellow wires will need to be tapped into the vehicles turn signal + wire or fuse for the switchback feature to function.

 In order to get the switchback turn signal feature, you will need to ground the black wire on the LED driver box. The yellow wire needs to get spliced into the 10-wire connector for the factory DRL board. The turn signal wire on this connector is the 2nd to the last wire on the right side of the connector.

Installation video for 2019+ Toyota Supra RGBW LED DRL Boards Below:

Product Description

RGBWA DRL Boards: Choose any color, several flashing/fading patterns, plus turn signal

Order Includes:

  • (2) 2019-2024+ Toyota Supra RGBW +A LED DRL Boards
  • *This package include DRL Boards Only, to be installed on your existing headlights
  • Selected Controller (Required)
  • LED Drivers + JST extension wires/splitter

Select Your Remote:

*All DRL kits require a remote to function, please select one of the remotes available below: our Bluetooth Remote controls your LEDs through an app on your mobile device and has a water-resistant metal casing with quick connect power wires and an inline fuse. The Handheld remote is our wireless handheld remote and is not water-resistant. You will be required to insert the included splitter wires into the controller module as well as the power wires.

    Vehicle Compatibility:

    This kit fits the following vehicles:

    • 2019 Toyota Supra GR MK5
    • 2020 Toyota Supra GR MK5
    • 2021 Toyota Supra GR MK5
    • 2022 Toyota Supra GR MK5
    • 2023 Toyota Supra GR MK5
    • 2024+ Toyota Supra GR MK5
      Select Select Controller
      Select Add 2 5' RGBW Grill Strips?
      From $188.40

      Original: $628.00

      -70%
      2019-2026+ Toyota Supra RGBW +A LED DRL Boards—

      $628.00

      $188.40

      Product Information

      Shipping & Returns

      Description

      2019+ Toyota Supra A90 RGBW LED DRL boards can change to any solid color, pure white, several customizable flashing and fading patterns, music sync, plus they have an integrated amber/orange switchback turn signal feature.The LED DRL Boards are an OEM-grade solution, with exact fitment, and perfect LED alignment. The RGBW LED DRL installation process for the 2019+ Toyota Supra is incredibly simple. The installer does not need to dissemble the headlights because the DRL Circuit Board is accessible from the back side of the light. Simply remove the factory DRL Circuit Board and install the new RGBW + A DRL  Board using the original hardware, connect the boards to the supplied LED driver boxes, then connect the LED drivers to the controller. This is one of the easiest installs out there! Your order includes two sets of LED boards, one for each side of the vehicle.
      • Upgrade your factory DRL Boards with direct factory fitment
      • Choose any solid color or pure white
      • Customizable flashing/fading patterns (you can choose colors to add and several preset flashing fading patterns for the colors to go with)
      • Integrated Switchback Amber Turn-signal
      • Brighter than stock - Bright enough to see during day
      Please refer to the RGBWA Wiring Guide when installing your LED replacement boards. The black wires on the LED driver boxes must be grounded/-. The yellow wires will need to be tapped into the vehicles turn signal + wire or fuse for the switchback feature to function.

       In order to get the switchback turn signal feature, you will need to ground the black wire on the LED driver box. The yellow wire needs to get spliced into the 10-wire connector for the factory DRL board. The turn signal wire on this connector is the 2nd to the last wire on the right side of the connector.

      Installation video for 2019+ Toyota Supra RGBW LED DRL Boards Below:

      Product Description

      RGBWA DRL Boards: Choose any color, several flashing/fading patterns, plus turn signal

      Order Includes:

      • (2) 2019-2024+ Toyota Supra RGBW +A LED DRL Boards
      • *This package include DRL Boards Only, to be installed on your existing headlights
      • Selected Controller (Required)
      • LED Drivers + JST extension wires/splitter

      Select Your Remote:

      *All DRL kits require a remote to function, please select one of the remotes available below: our Bluetooth Remote controls your LEDs through an app on your mobile device and has a water-resistant metal casing with quick connect power wires and an inline fuse. The Handheld remote is our wireless handheld remote and is not water-resistant. You will be required to insert the included splitter wires into the controller module as well as the power wires.

        Vehicle Compatibility:

        This kit fits the following vehicles:

        • 2019 Toyota Supra GR MK5
        • 2020 Toyota Supra GR MK5
        • 2021 Toyota Supra GR MK5
        • 2022 Toyota Supra GR MK5
        • 2023 Toyota Supra GR MK5
        • 2024+ Toyota Supra GR MK5
